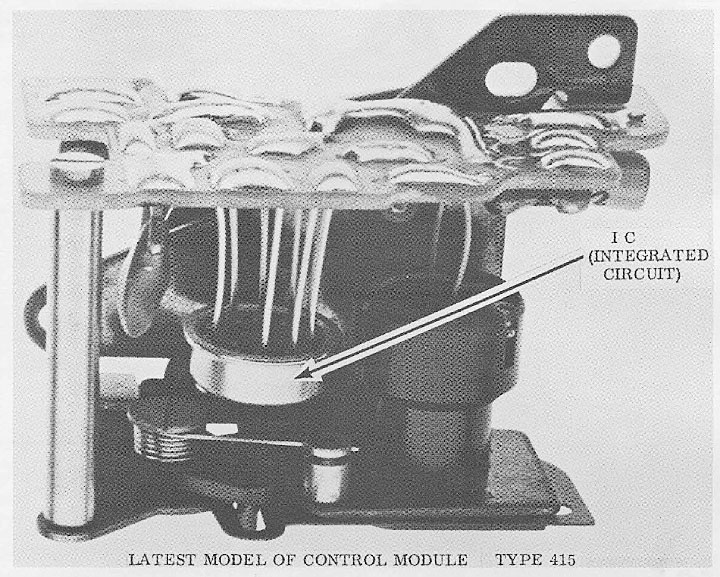

| If you're installing the new style control module in an older camera, you must also replace the diaphragm resistor board. Use the new style diaphragm resistor board for shutter EB-413 with a total resistance of 10K. The mounting system for the Type 415 control module is also a little different. You'll have to replace the bracket shown in figure 54 with a threaded post (part #31751200). There's another variation in the color coding of one wire, as shown in the diagram. The pink wire running to the Type 415 control module replaces the blue Wire in the other styles. This pink wire goes to the diaphragm resistor board. |
